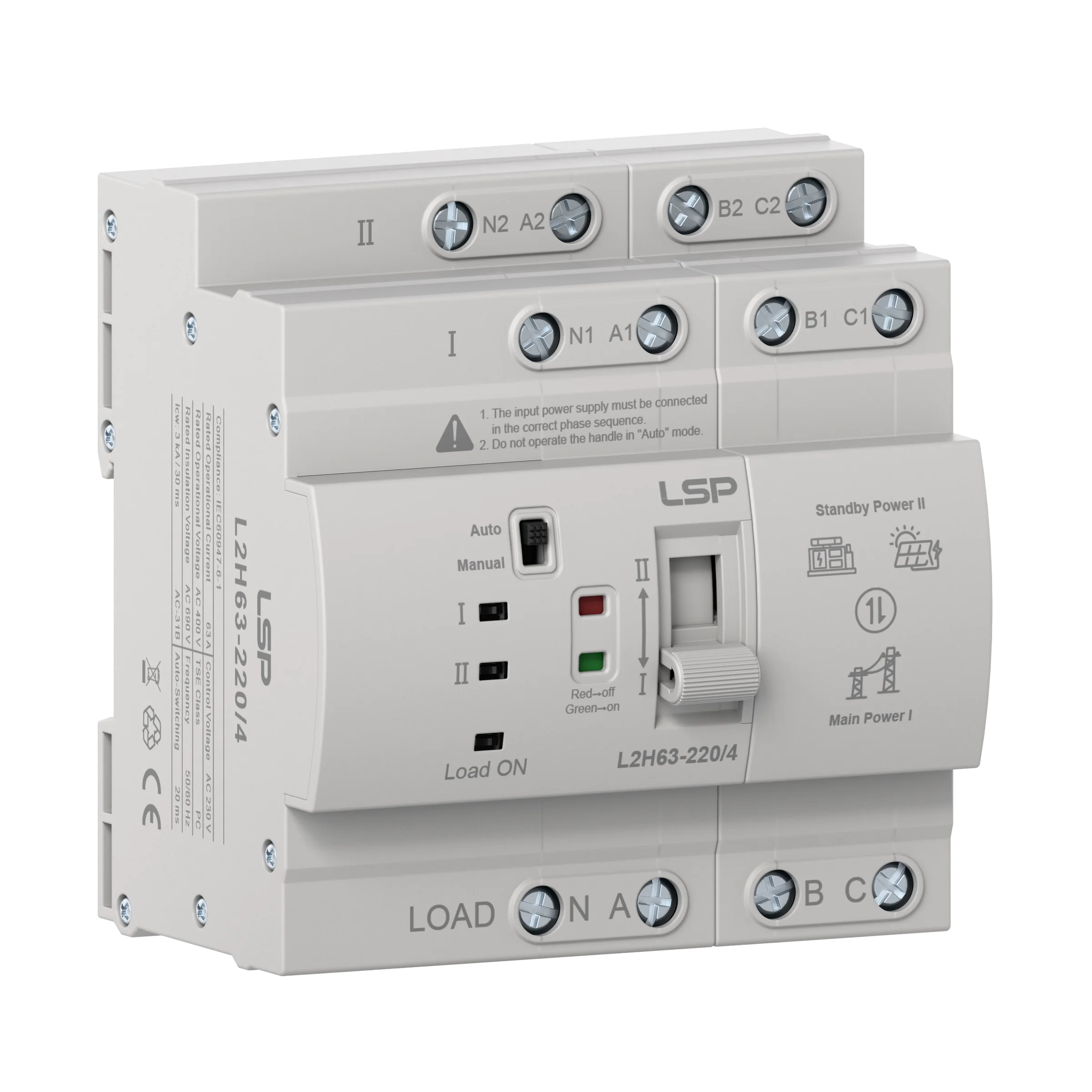

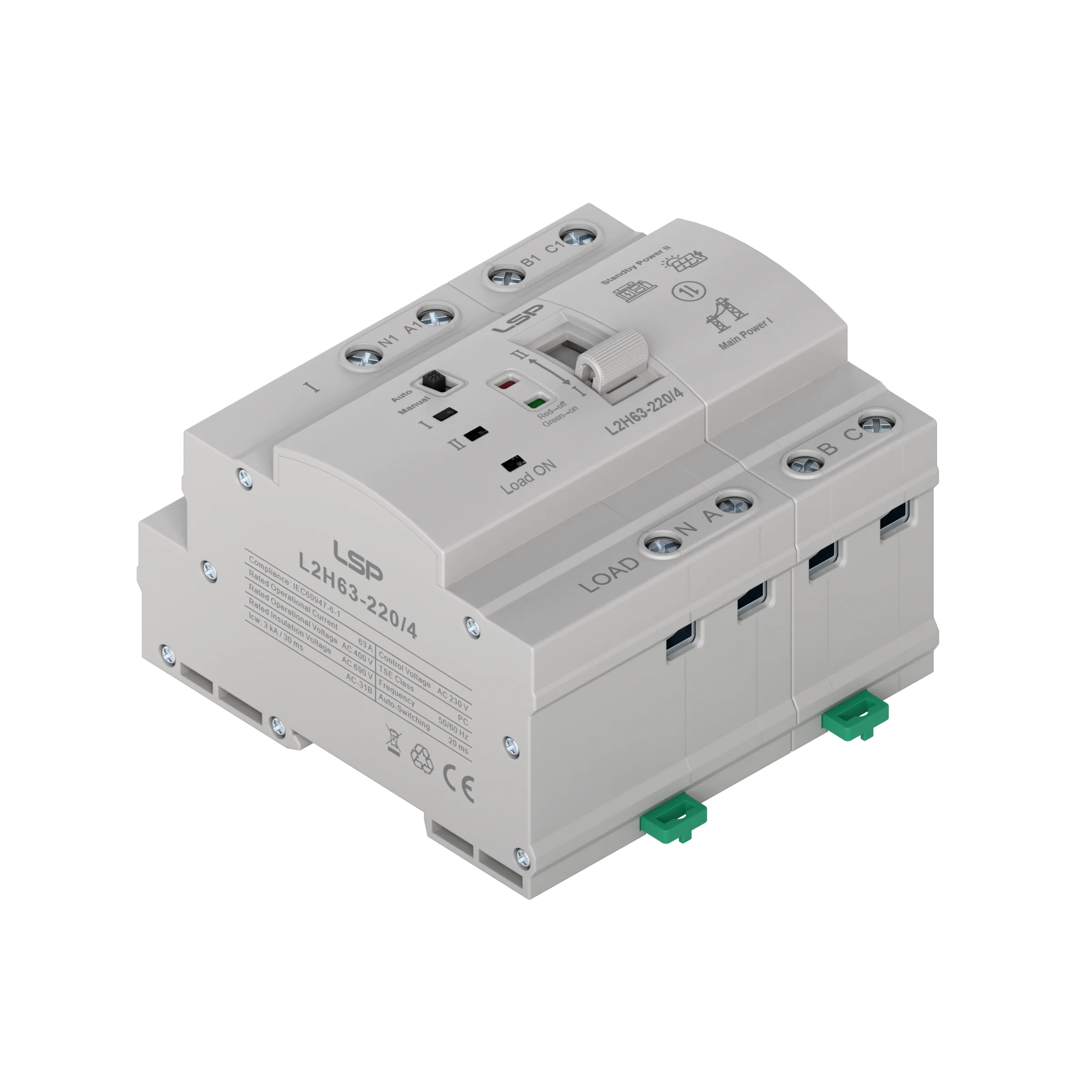

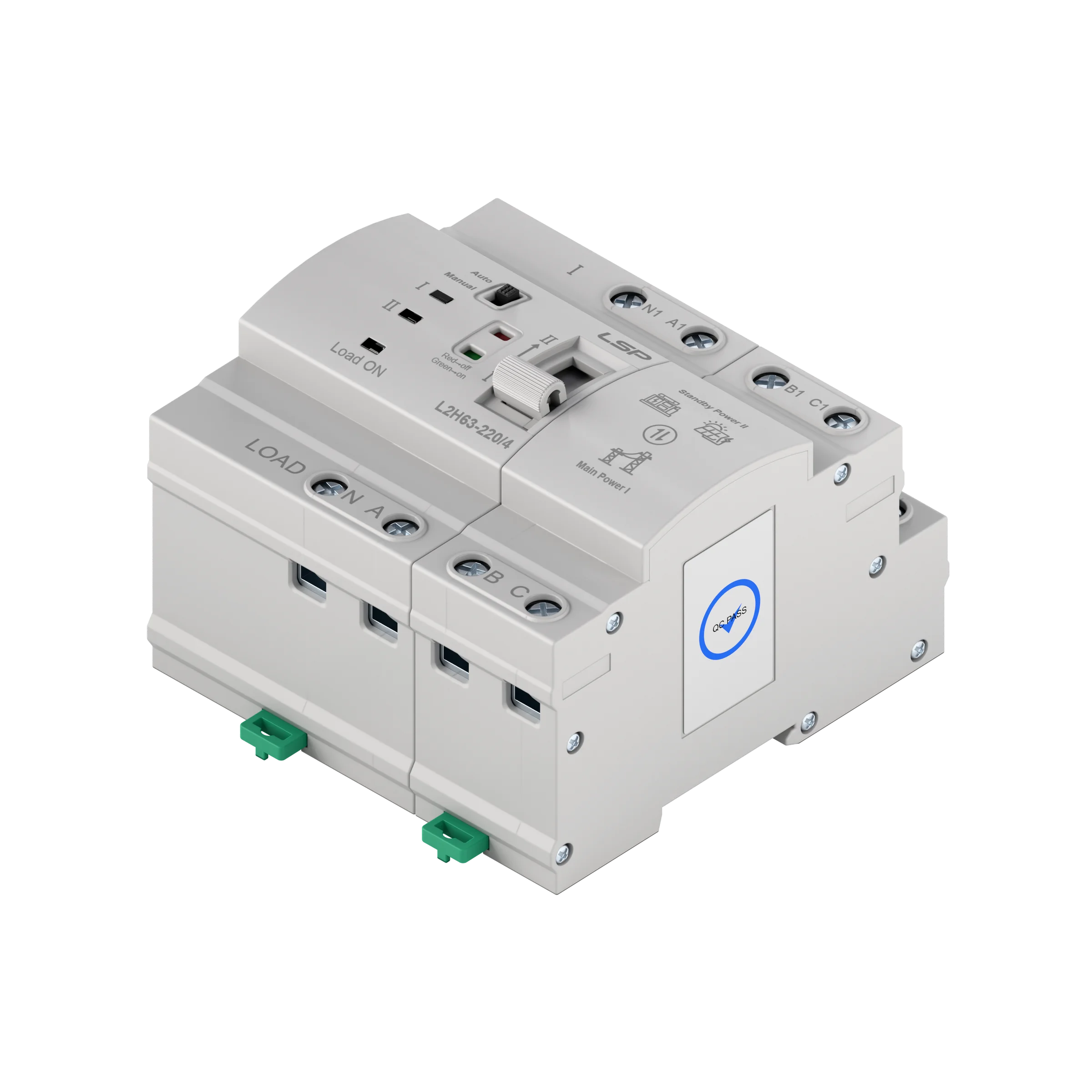

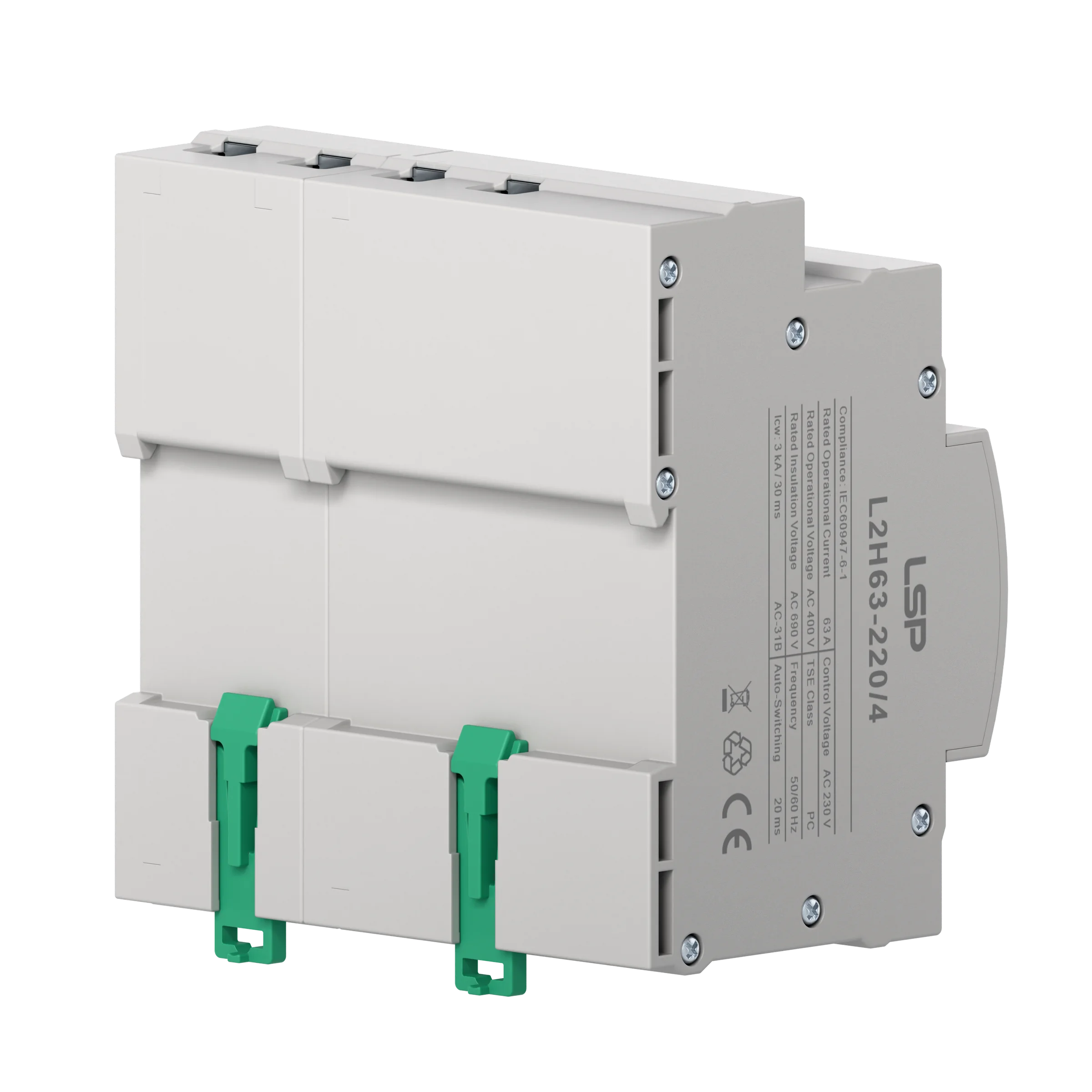

63 Amp Automatic Transfer Switch ATS L2H63-220/4
63 Amp Automatic Transfer Switch ATS L2H63-220/4
Main Features:
- PC-Class change-over switch
- Dual power supply design: power supply I (main) and power supply II (standby)
- Supports AC systems with a rated current of 10 A to 63 A
- Automatic switching time 20 milliseconds
- Compliance with lEC 60947-6-1:2021
THÔNG TIN SẢN PHẨM
Main Specification
| TSE Class | PC-Class |
|---|---|
| Rated Operational Voltage (AC) Ue | 400V |
| Rated Operational Current Ie | 63A |
| Rated Insulation Voltage (AC) Ui | 690V |
| Rated Impulse Withstand Voltage Uimp | 8KV |
| Rated Frequency | 50/60 Hz |
| Automatic Switching Time | 20 ms |
| Pole Number | 4P |
| Usage Category | AC-31B |
| Rated Conditional Short-Circuit Current Iq | 50 kA |
| Rated Impulse Withstand Voltage | 8 kV |
Dimensions
Installation Instructions
Wiring Diagram & Installation
Main Features:
- PC-Class change-over switch
- Dual power supply design: power supply I (main) and power supply II (standby)
- Supports AC systems with a rated current of 10 A to 63 A
- Automatic switching time 20 milliseconds
- Compliance with lEC 60947-6-1:2021
